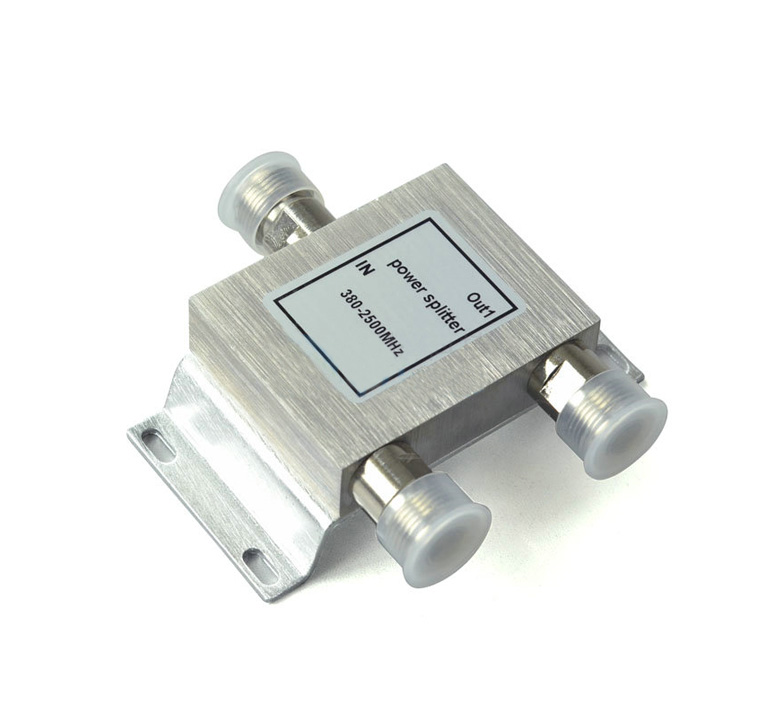

適用頻段：800 MHz--2500MHz

產(chǎn)品用途：用于在室內(nèi)0.8GHz-2.5GHz信號進行分路。

電氣性能指標(biāo)：Electrical Specifications

頻率范圍Frequenc Range(MHz)                                   800-2500

駐波比V.S.W.R                                                    ≦1.2

隔離度Islation(dB)                                                  ≧20

***大功率Maximun Input Power(w)                                      100

分配比N.Division Ratio                        等功分 Equel Power Allocation

插入損耗Insertion Loss(dB)                                           ≦3.5

機械特性  Mechanical Specifications

接頭形式：（OUT) Connection Type                                   N-K

外形尺寸Dinension(mm)                                         44x65x20
